$329.00
Availability: Out of Stock

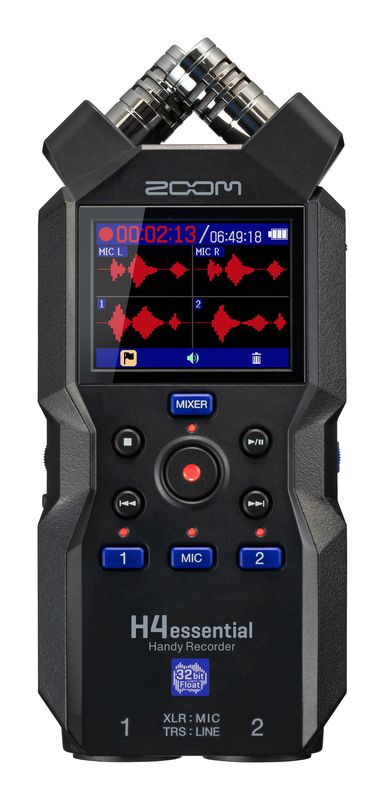

H4Essential Handy Recorder
32-Bit Float Recording for All
With four tracks, 32-bit float recording, advanced X/Y mics and 2 XLR/TRS inputs, creators have more ways to record their music, podcasts, and audio-for-video.
With 32-bit float recording, you never have to adjust levels. The H4essential captures every nuance of your sound ensuring high-quality, clip-free audio in every take.
The Essential Series was designed with Accessibility for the blind and visually impaired. Navigate the menu with audible descriptions through the built-in speaker or headphones. Creators can choose English, Spanish, French, Japanese, German, Italian or Chinese.*
The 2 XLR/TRS combo inputs feature Zoom’s ultra-clean preamps that supports phantom power and +4dBu professional line level input. The onboard X/Y microphones can capture sound up to a thunderous 130 dB SPL, equivalent to a rock concert.
Stream in 32-bit float while simultaneously recording to an SD card. When connected to a PC, Mac, iOS, or Android device using the USB-C port, the H4essential can be used as a 4-in/2-out audio interface
Use the built-in mixer to easily adjust each track’s audio level. It also has a waveform display so you can see your audio as it records.
The H4essential is perfect for recording music. With 2 XLR/TRS inputs and the stereo X/Y microphones it’s easy to record live shows, rehearsals and songs.
The XLR inputs can be used to capture on-set dialogue and audio for sound design. The onboard X/Y microphones are perfect for recording ambience.
Podcasters can use the H4essential’s XLR inputs with external mics for one-on-one conversations and the X/Y mics for interviews on-the-go.
Use the BTA-1* Bluetooth Adapter to pair with your iOS device to remotely hit record, adjust your mix, view your waveforms, and change settings.
With the BTA-1* Bluetooth Adapter you can also pair with Bluetooth timecode devices for audio and video sync.
*BTA-1 Adapter not included
Recording and rotary controls have been designed to allow for quiet operation.
You can use the built-in speaker to listen to your recordings for quick reference.
The new full-colour LCD screen makes it easy to navigate through the H4essential’s menu and functions.

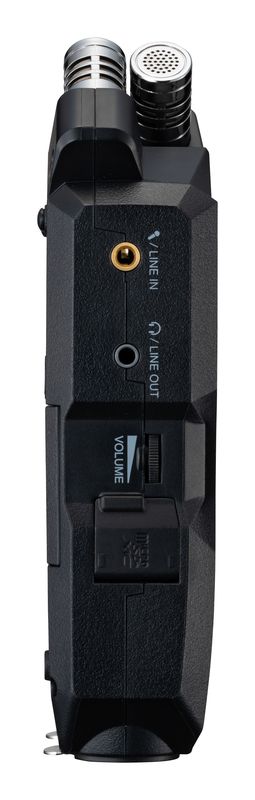

Use the 3.5mm line output for headphones or to connect to a camera. The H4essential also features a 3.5mm mic/line input.
The onboard X/Y microphones capture crystal clear audio up to 130 dB SPL.
The H4essential supports SDXC cards up to 1TB to record hours and hours of audio
*Please note: BTA-1 Adapter not included
Inputs | Built-in mic (stereo) | 1 |
---|---|---|
XLR/TRS | 2 | |
MIC/LINE IN | 1 | |
Outputs | Headphones | 1 |
Built-in speaker (mono) | 1 | |
Built-in mic | 90º XY stereo format | |
---|---|---|
Directionality | Unidirectional | |
Sensitivity | –43 dB/1 Pa at 1 kHz | |
Maximum sound pressure input | 130 dB SPL | |
INPUT1-2 | Connector | XLR/TRS combo jacks ×2 |
(XLR:2 HOT TRS:TIP HOT) | ||
Input gain | Adjustment unnecessary | |
Input impedance | MIC: 3.8 kΩ or more | |
LINE: 39 kΩ or more | ||
Maximum input level | MIC: +4 dBu | |
LINE: +24 dBu | ||
Phantom power | +48 V | |
Channel total 10 mA or less | ||
Equivalent input noise | MIC: -120 dBu or less(IHF-A) @150 Ω input | |
LINE: -95 dBu or less(IHF-A) @600 Ω input | ||
MIC/LINE IN | Connector | Stereo mini jack |
(supports plug-in power) | Input gain | Adjustment unnecessary |
Input impedance | 2 kΩ or more | |
Headphones | Connector | Stereo mini jack |
---|---|---|
Maximum output level | 20 mW + 20 mW(into 32 Ω load) | |
Output impedance | 15 Ω or less | |
Built-in speaker | Type | 20 x 30mm elliptical dynamic speaker |
Effective maximum output | 250mW | |
Maximum simultaneous recording tracks | 4 |
---|---|
Maximum simultaneous playback tracks | 4 |
Recording formats | WAV |
44.1/48/96 kHz, | |
32-bit float mono/stereo | |
BWF and iXML formats supported | |
Recording media | 4-32GB cards compatible with the microSDHC specification |
64GB–1TB cards compatible with the microSDXC specification | |
2.0-inch full-color LCD | 360 x 240 |
---|---|

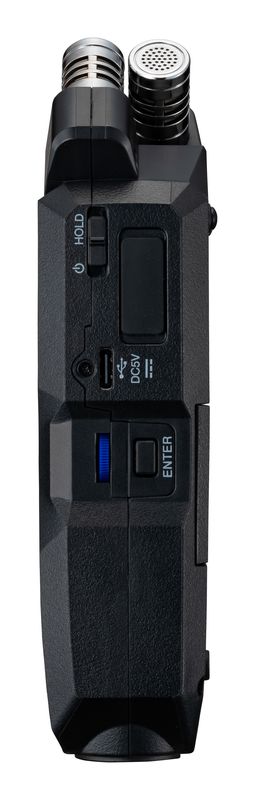

Connector | USB Type-C | |
---|---|---|
• Use a USB cable that supports data transfer. | ||
Audio Interface | USB 2.0 High Speed | |
Input and output channels | 4 in / 2 out (Multi) | |
2 in / 2 out (Stereo) | ||
Sampling frequency | 44.1/48/96 kHz (AIF only) | |
44.1/48 kHz (AIF + onboard recording) | ||
Bit depth | 24-bit, 32-bit float | |
File transfer | USB 2.0 High Speed | |
DEDICATED WIRELESS ADAPTER | ZOOM BTA-1 |

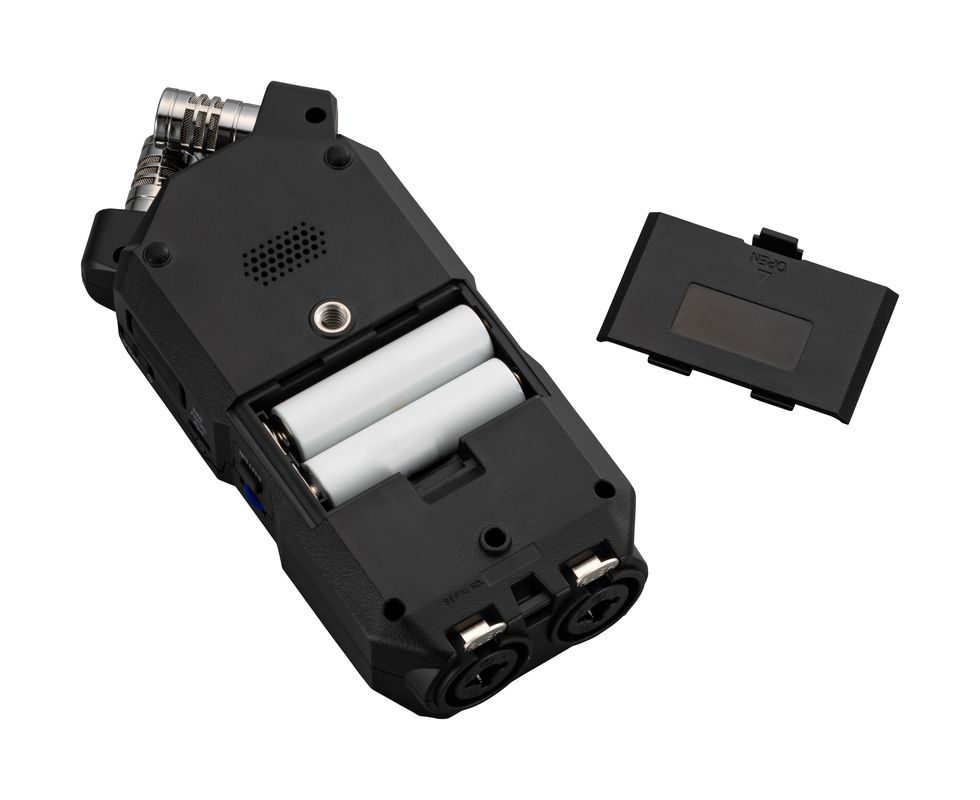

2 AA batteries | Alkaline, lithium or rechargeable NiMH batteries |
---|---|
AC Adapter | ZOOM AD-17:DC 5V / 1 A |
• USB bus power is supported. | |
Alkaline batteries | About 9 hours |
---|---|
NiMH batteries (1900 mAh) | About 9 hours |
Lithium batteries | About 19 hours |
48 kHz/32-bit float, phantom power off, no headphones, no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Alkaline batteries | About 2 hours 30 minutes |
---|---|
NiMH batteries (1900 mAh) | About 4 hours |
Lithium batteries | About 8 hours |
48 kHz/32-bit float, phantom power off, headphones used (33Ω load), no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Alkaline batteries | About 40 minutes |
---|---|
NiMH batteries (1900 mAh) | About 1 hour 30 minutes |
Lithium batteries | About 3 hours 30 minutes |
48 kHz/32-bit float, phantom power off, headphones used (33Ω load), no remote, display power saving on, display brightness at Medium
• These values are approximate.
• Continuous battery operation times were determined using in-house testing methods.They will vary greatly according to use conditions.
Power consumption | 3 W maximum |
---|---|
Dimensions | 66.9 mm (W) × 156.1 mm (D) × 38.0 mm (H) |
Weight (including batteries) | 243 g |
Note: 0 dBu = 0.775 Vrms
